Hydraulic hoses

Desctription


- High pressure hoses up to 415 bar.	Type - 1SN, 2SN, DIN 20022	t=-40°C ÷ +120°C
- High pressure hoses up to 450 bar.	Type - 4SP, 4SH, DIN 20023	t=-40°C ÷ +120ºC
- High pressure hoses up to 776 bar	Type - R13, R15, R17 SAE100	t=-40°C ÷ +125ºC
- Hose with textile braid to 145 bar	Type - 2ТЕ, 3ТЕ, DIN 20021	t=-40°C ÷ +100ºC
- Hoses for mineral oils up to 10 bar	Type - TML. DIN 51600	t=-30ºC ÷ +90°C
- Hoses for transport fuels to 11 bar	Type - FSK. ISO 7620	t=-35ºC ÷ +120°C
- Hoses for hot water up to 12 bar.	Type - DH 1/2/3. ISO 7620	t= 300º; 400º; 500º C
- Hoses for steam up to 6 bar.	Type - DS 2. DIN 7825	t= до 164º C
- Chemical resistant hoses.	Type - UPE. DIN 2823.	t=-35ºC ÷ +130ºC
- Thermoplastic hoses up to 325 bar	Type - МТ1, МТ2, OL7	t=-40°C ÷ +100ºC

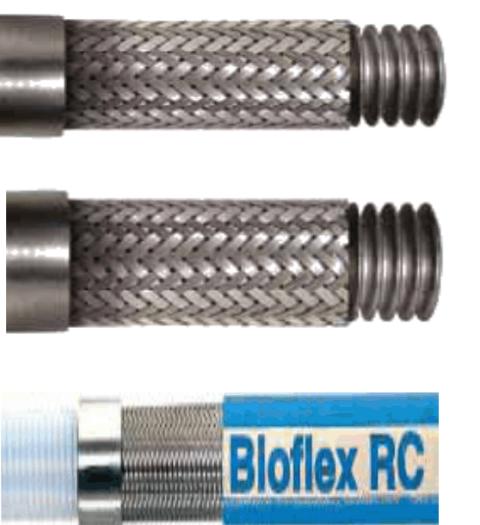

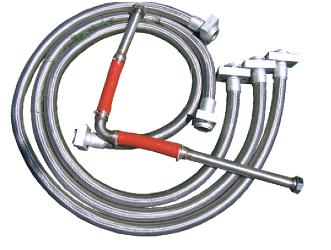

- Stainless steel hoses.	St. 1.4521 AISI 321	t=-40ºC ÷ +600º C

Hose fittings
